ACC-EN-SCI

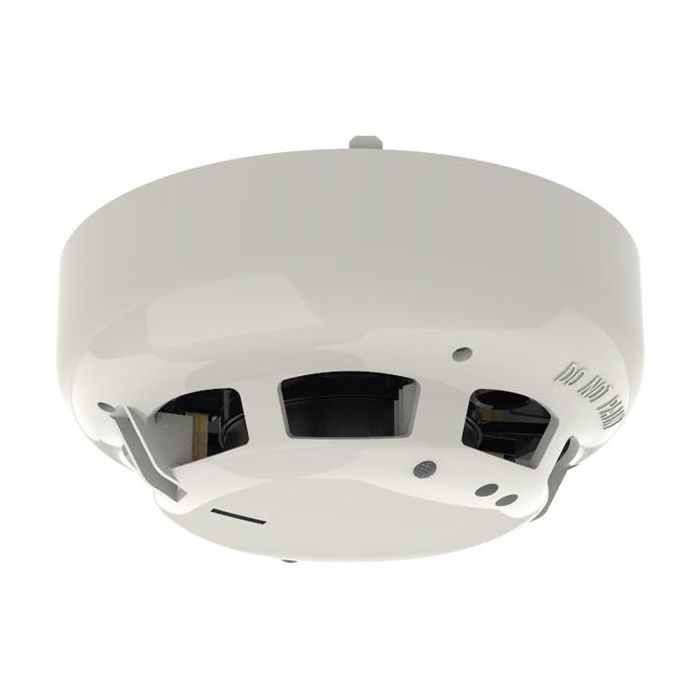

Model ACC-EN-SCI is a multi-sensor with short-circuit isolator (SCI), which is fully compatible with Hochiki’s ESP open protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber.
Model ACC-EN-SCI is a multi-sensor with short-circuit isolator (SCI), which is fully compatible with Hochiki’s ESP open protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber.
The sensor has three modes, which are controlled from the Control Panel (1), allowing either the optical element or thermal element or both elements to be active in making the fire decision.
The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing(1)).
The smoke chamber can easily be removed or replaced for easy maintenance.
To maintain SCI functionality, this sensor requires the YBV-R/4 mounting base
| Manufacturer | Hochiki |
|---|---|
| Approvals | EN 54-5, EN 54-7 |
| Type of Tecnology | multi-technology, Smoke optician, Heat detector |
| IP Rate | IP42 |
| Analog Protocol | Hochiki Esp |
| addressing | No |
| Intrinsically Safe | No |
| Electrical Specifications | 17 - 41 V dc |
| Operating Temperature Range | -10 | +50 |
| Relay | No |
| Marine Approved | No |
| SIL Approved | No |
