CHQ-DIM2(SCI)/SIL
In stock
SKU
CHQ-DIM2(SCI)/SIL
- SIL Level 2 approved
- Ideal for use in oil and gas environments
- Single loop address
- Loop powered
- 2 independent inputs for monitoring of volt-free contacts
- Each input can be configured to monitor either normally open or normally closed contacts
- Features an integral SCI
- Approved by LPCB

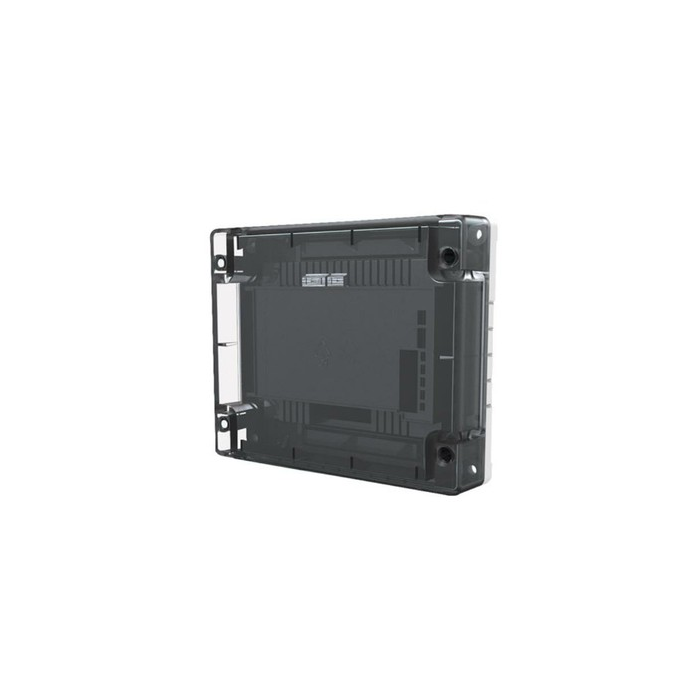

Model CHQ-DIM2(SCI)/SIL is a Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment.
A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DIM2(SCI)/SIL, increases the IP rating to IP65.
| Color | Black |
|---|---|
| Manufacturer | Hochiki |
| Approvals | EN 54-17:2005, EN 54-18:2005 |
| IP Rate | IP21 |
| Analog Protocol | No Protocol - Conventional |
| Input | 2 individually programmable |
| addressing | Yes |
| Intrinsically Safe | No |
| Electrical Specifications | 17 - 41 V dc |
| Operating Temperature Range | -10°C TO +50°C |
| Relay | No |
| Marine Approved | No |
| SIL Approved | Yes |
| Isolator | Yes |
Write Your Own Review
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
CHQ-DIM2SCISIL_Specification | CHQ-DIM2SCISIL_Specification | 143.2 KB | Download |
