CHQ-WS2/SIL
In stock
SKU
CHQ-WS2/SIL

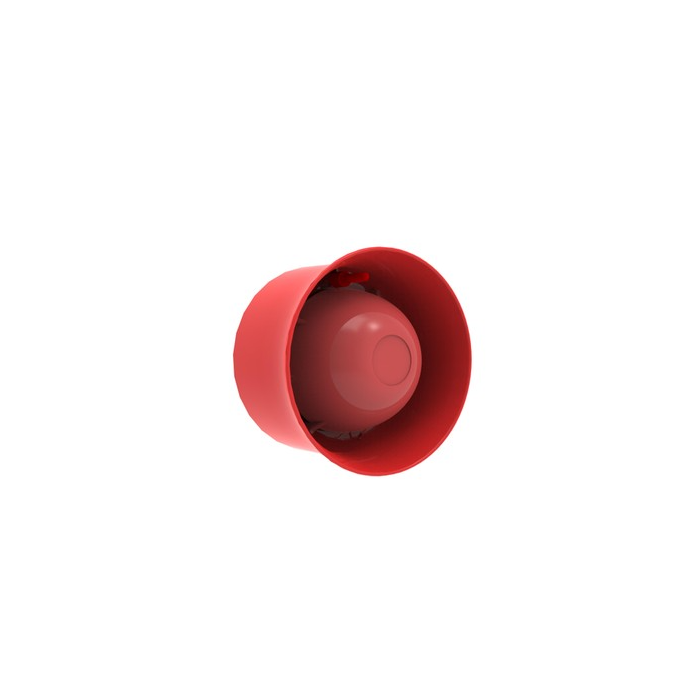

Analogue Loop-Powered Wall Sounder, red case (SIL2 approved)
Model CHQ-WS2/SIL is an addressable loop powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.
The unit is designed to fit to the Standard Base (YBO-R/3(RED)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.
Also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
Control panel compatibility required.
| Manufacturer | Hochiki |
|---|---|
| Open_Celling_Wall | (Wall) W |
| IP Rate | IP21 (IP65 with WS2-WPK) |
| Analog Protocol | No Protocol - Conventional |
| Intrinsically Safe | No |
| SIL Approved | Yes |
| Marine Approved | No |
| Operating Range | 300 Hz ~ 2850 Hz |
| Relay | No |
| Beacon | No |
| Operating Temperature Range | -10°C TO +50°C |
| Decibel At 1 Mt | 90 ~ 102 dB |
| Absorption | 02mA~ 08mA |
| Approvals | En 54-3 |
| Electrical Specifications | 17 - 41 V dc |
