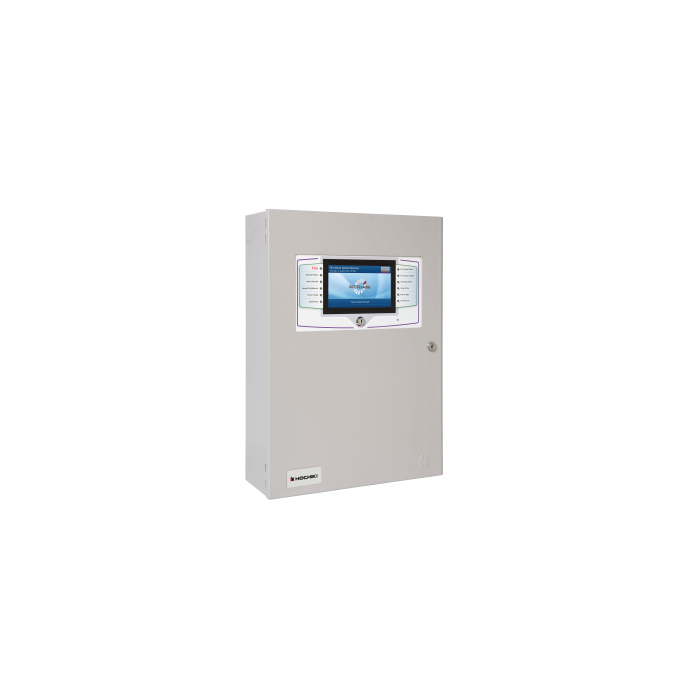

HLAAP-2LKS
- Compliant with EN54-2, EN54-4
- 2 to 8 loop or 2 to 16 loop versions
- 500mA loop current
- 4 programmable sounder circuits each rated at 2.5 A
- 5.25 A or 10.25 A, power supply options
- 3 programmable inputs
- 5 programmable relay outputs
- Hard wired fire and fault routing inputs and outputs
- Up to 512 programme Input/ Output via optional u plug in and serially connected expansion cards
- Modular electronics
- Over 4000 sub address points per panel
- Option to “invert” inputs and outputs
- Powerful, standard configuration templates
- Network up to 128 panels
- Configurable via USB port to PC or memory stick
- 2 ancillary serial ports
The all new L@titude product range of fire alarm control equipment combines the very latest hardware and software to produce a control and indication system,which ispowerful and sophisticated, yet simple to use and understand.
The flexibility of the L@titude platform is such that it can be re-configured to realise many other control and indication applications, with direct integration into intelligent buildings.
Moving away from the simple, price driven competitive model used by most manufacturers today, the L@titude concept is designed to add value to System Designers, Integrators, Service Providers and the end users.
Developed from the “ground up” by Hochiki’s leading design team and using some of the most advanced technology available, L@titude is designed as one of the most powerful, intelligent and technically robust fire alarm products available.
Not only do the products and services offered under the L@titude brand provide solutions to the most technically challenging applications in life safety L@titude will deliver added value, market advantage and a competitive edge to your business.
The modular nature of the L@titude system allows all field wiring to be connected to a passive mother board enabling addition, re-configuration or replacement of all electronic hardware without the need to disconnect any field wiring.
This modularity also allows each panel to be customised with addressable loop detection circuits, conventional detection circuits, relay cards, additional sounder outputs or programmable I/O modules as required.
| Color | Gray |
|---|---|
| Manufacturer | Hochiki |
| Approvals | EN 54-2, En 54-4, EN 54-13 |
| Input | 3 programmable, 4 programmable |
| Outputs | 4 monitored, 5 programmable relays |
| Electrical Specifications | 24 Vdc |
| Operating Temperature Range | -10°C TO +50°C |
| Analog Protocol | Hochiki Esp |
| Intrinsically Safe | No |
| addressing | No |
| Type of Tecnology | Analogue 1 loop (expandable to 2) |
| Relay | Yes |
| IP Rate | IP54 |
| Marine Approved | No |
| SIL Approved | No |
