VESDA Sensepoint XCL
In stock
SKU
XCL-LB

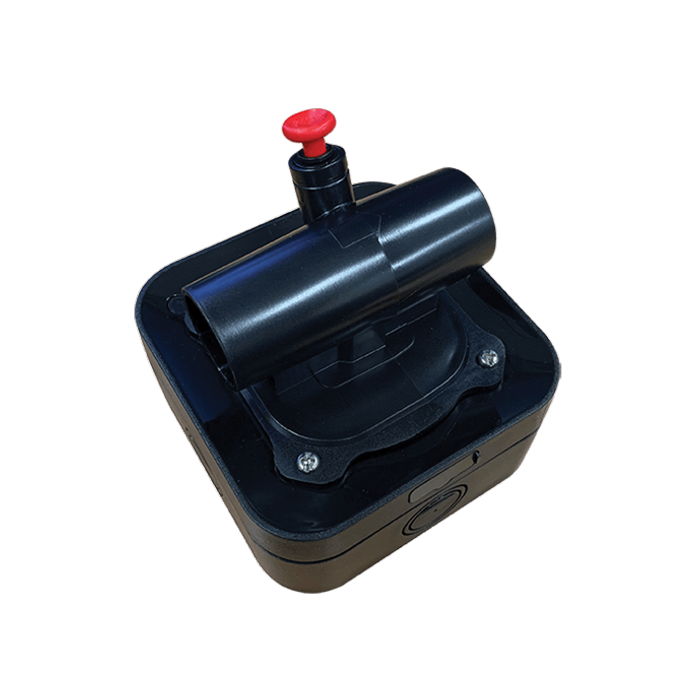

VESDA Sensepoint XCL – Large Bore is a gas detection solution that utilizes the ASD pipe network to deliver superior gas detection via multiple hole (multi-point) sampling. The combined solution provides reliable detection of gases for occupant protection and process monitoring whilst simultaneously ensuring protection against fire threats.
The VESDA Sensepoint XCL – Large Bore portfolio has a range of gas sensors that addresses a wide range of applications and through its Bluetooth interface can be paired with a smart device for commissioning and maintenance. The smart device application (Sensepoint App) provides quick access to detector diagnostic information and simplifies detector configuration, calibration and bump testing.
Features
- Wide range of gases to support most application needs:
- Flammable gases (% LEL)
- Oxygen (O2, % v/v)
- Carbon Monoxide (CO, ppm)
- Carbon Dioxide (CO2, % v/v, ppm)
- Hydrogen (H2, ppm)
- Hydrogen Sulphide (H2S, ppm)
- Nitrogen Dioxide (NO2, ppm)
- Ammonia (NH3, ppm)
- Aspirated gas sampling technology:
- Multi-point sampling provides greater coverage and increased design flexibility
- Remote sampling eliminates the need to enter the protected zone
- Centralized location saves time & money for service and maintenance
- Detector protection against environmental conditions ensures reliable long term operation
- Integral alarm status LEDs
- Integral gas port for bump test and calibration
- Field replaceable gas sensor cartridges
- Smart device application (Sensepoint App) enables faster detector commissioning, maintenance and service
- Multiple output options: 2 x configurable relays (Alarm, Fault), Analog 4-20mA or Modbus RTU
- VSC and VSM4 integration for remote access to detectors (Modbus version) operating status
| Color | Black |
|---|---|
| Approvals | AS 1668.2, BT SIG, CE EMC, CSA-C22.2 No. 61010-1-12, EN 50270, EN/UL/IEC 61010-1, FCC, RED, UL2075 (CO and CH4) |
| IP Rate | IP65 |
| Electrical Specifications | 20 to 27V AC |
| Operating Temperature Range | -20°C to +50°C |
| Relay | Yes |
| Intrinsically Safe | No |
| Marine Approved | No |
| addressing | No |
| SIL Approved | No |
