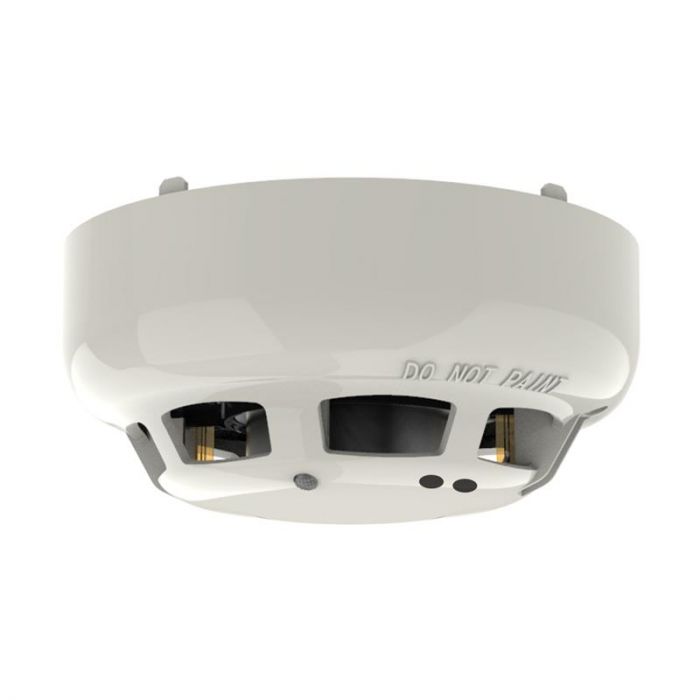

ACC-EN/SIL
In stock
SKU
ACC-EN/SIL-1
- SIL Level 2 approved
- Ideal for use in oil and gas environments
- User selectable modes
- Incorporates Optical & Heat elements
- Removable, High Performance Chamber
- Pulsing/non-pulsing controlled from panel
- Twin LEDs allow 360° viewing – green when polling, amber when isolating, red in fire
- Variable sensitivity
- Electronically Addressed
- LPCB & VdS approved A1 & C.
Model ACC-EN/SIL is a Multi-Sensor, which which has been independently assessed and approved for use in a SIL2, low demand safety function with regards to random failure rates.
The ACC-EN/SIL has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). The ACC-EN/SIL smoke chamber can easily be removed or replaced for easy maintenance.
| Manufacturer | Hochiki |
|---|---|
| Approvals | EN 54-5, EN 54-7 |
| Type of Tecnology | multi-technology, Smoke optician, Heat detector |
| IP Rate | IP42 |
| Analog Protocol | No Protocol - Conventional |
| addressing | Yes |
| Intrinsically Safe | No |
| Electrical Specifications | 17 - 41 V dc |
| Operating Temperature Range | -30°C a +60°C |
| Relay | No |
| Marine Approved | No |
| SIL Approved | Yes |
