CGS Combustible Gas Sensor
NOT ALL CONFIGURATIONS ARE AVAILABLE

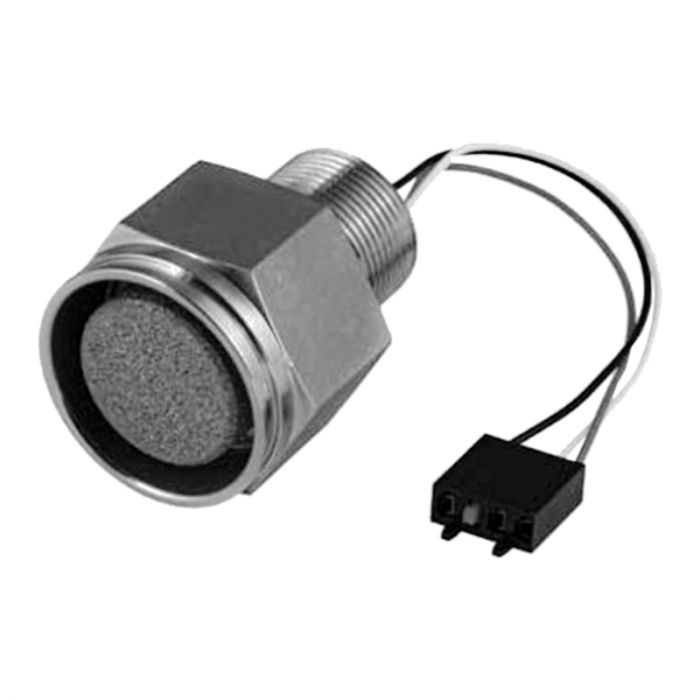

CGS Combustible Gas Sensor. Stainless steel catalytic sensor that provides an accurate measurement of combustible gas concentration in the % LFL range.
CGS Combustible Gas Sensor (Spec Sheet: 90-1041). Stainless steel catalytic sensor that provides an accurate measurement of combustible gas concentration in the % LFL range.
Requires FlexVu UD10, Model 505, U9500A or DCUEX transmitter.
• Compliance to ANSI/ISA-12.13.01-2000 performance standard
• Performance certified to FM 6310/6320, CSA 22.2 #154, and ATEX EN60079-29-1
• Performance certified to IEC60079-29-1 when connected to the FlexVu UD10, UD10-DCU
• Detects hydrogen and hydrocarbon gases
• Constant current or constant voltage options available
• Poison resistant construction
• 3/4” NPT or 20 mm thread option
• Wire lead options of 6” or 30”
• Sensor Separation Termination Box (STB) option available
• Variety of special accessories available
• FlexVu UD10 universal display provides full digital readout, calibration and user interface
• Performance approved from –40°C to 75°C for life safety applications
• Hazardous Location approved from –55°C to 125°C for process control applications
• SIL2 certified when used with FlexVu UD10 Universal Display
| Color | Black |
|---|---|
| Manufacturer | Det-tronics |
| Approvals | ATEX, CSA, EN 60079-29-1 Atex, FM, IECEx, SIL 2 |
| Analog Protocol | Det-Tronics |
| addressing | No |
| Intrinsically Safe | No |
| Electrical Specifications | 24V |
| Operating Temperature Range | -40 | +75 |
| Relay | No |
| Marine Approved | No |
| SIL Approved | No |
